1000V Digital Auto Range Multimeter

Name: 1000V Digital Auto Range Multimeter
Brand: Habotest
Price: 19.20 USD

Wholesale 1000V Digital Auto Range Multimeter from china suppliers

Place of Origin : Guangdong, China

Brand Name : Habotest

Model Number : HT118A, HT118A

MOQ : 1-49 Pieces

Price : $19.20

Measuring Current Range : 600uA/6000uA/60mA/600mA/6A/10A

Measuring Voltage Range : 600mV/6V/60V/600V/1000V

Measuring Resistance Range : 600Ohm/6kOhm/60kOhm/600kOhm/6MOhm/60MOhm

Measuring Capacitance Range : 10nF/100nF/1uF/10uF/100uF/1mF/10mF/100mF

Operating Temperature : -5~50

Dimensions : 188*88*58mm

Frequency : yes

Diode test : yes

bar graph : yes

Temperature test : yes

DUTY CYCLE : yes

continuity : yes

ture RMS : yes

input jack LED indication : yes

Product Name : Big Voltage Automatic Multimeter Digital

Selling Units : Single item

Single package size : 18.8X8.8X5.8 cm

Single gross weight : 0.350 kg

Package Type : 40pcs/ Cartoon

Contact Now

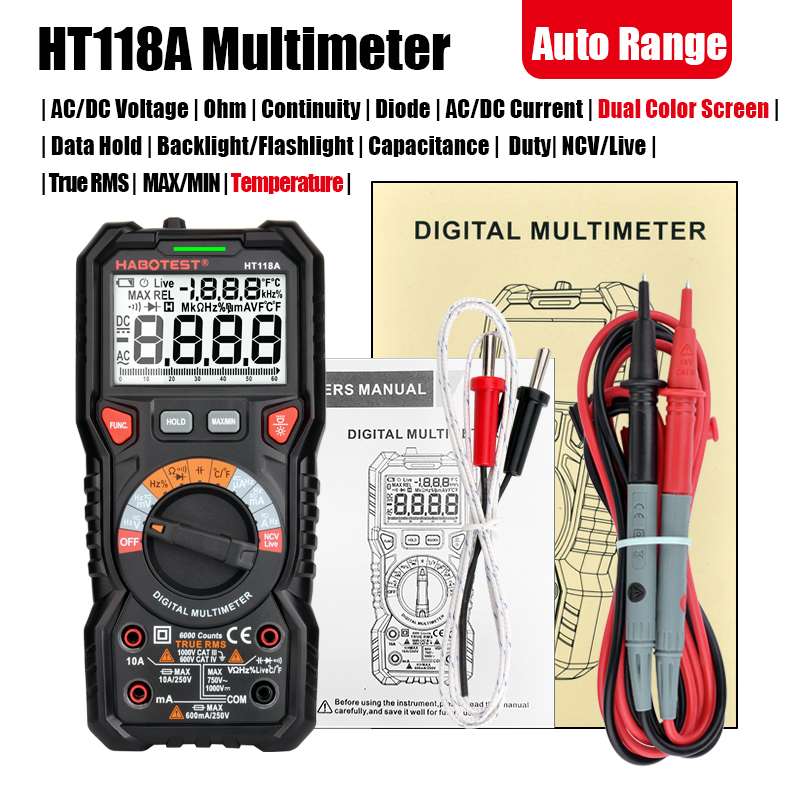

6000 Counts Digital Multimeter HT118A Double color LCD display accurate Automatic measurement with DC AC current, Voltage

This Digital Multimeter is Autorange and it has large double colored LCD display and Bar graph, aso has very convenient input LED indication light and features with AC DC current & voltage test,Diode Test, Continuity, Data hold, TRUE RMS function etc. high accuracy and easy operation face.

Specification

Function	Range	Accuracy
Function	Range	HT118A	HT118C	HT118D
DC Voltage	600mV/6V/60V/600V/1000V	±(0.5%+3)	±(0.5%+3)	±(0.5%+3)
AC Voltage	600mV	±(1.0%+5)
AC Voltage	6V/60V/600V/750V	±(1.0%+5)	±(1.0%+5)	±(1.0%+5)
DC Current	60uA/60mA/600mA		±(0.8%+3)	±(0.8%+3)
	600uA/6000uA/60mA/600mA	±(0.8%+3)
	10A	±(1.2%+3)	±(1.2%+3)	±(1.2%+3)
AC Current	60mA/600mA		±(1.0%+3)	±(1.0%+3)
	600uA/6000uA/60mA/600mA	±(1.0%+3)
	10A	±(1.5%+3)	±(1.5%+3)	±(1.5%+3)
Resistance	600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ	±(0.8%+3)	±(0.8%+3)	±(0.8%+3)
Capacitance	10nF/100nF/1μF/10μF/100μF/1mF/10mF	±(4.0%+3)	±(4.0%+3)	±(4.0%+3)
Capacitance	100mF	±(5.0%+5)	±(5.0%+5)	±(5.0%+5)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(1.0%+3)	±(1.0%+3)	±(1.0%+3)
Duty	1%~99%	±(1.0%+2)	±(1.0%+2)	±(1.0%+2)
Temperature (°C/°F)	-40°C~1000°C	±(1.0%+3)	±(1.0%+3)
Temperature (°C/°F)	-40°F~1832°F	±(1.0%+3)	±(1.0%+3)
Counts		6000 Counts	6000 Counts	6000 Counts
Auto/Manual range		Auto	Manual	Manual
Display		LCD dual display	LCD	LCD
Bargraph		√
NCV		√(sound and light alarm)	√(sound and light alarm)	√(sound and light alarm)
Diode test		√	√	√
Continuity		√(sound and light alarm)	√(sound and light alarm)	√(sound and light alarm)
True RMS		√	√	√
bandwidth		1kHz	1kHz	1kHz
Battery test (1.5V/9V)			√	√
Double color backlight		√	√	√
Input jack LED indicate		√	√	√
Work light		√	√	√

Packaging & Shipping

Port: Shenzhen

Lead Time :

Quantity(Pieces)	1 - 40	41 - 1000	>1000
Est. Time(days)	3	25	To be negotiated
